Antimatter in a Trap

by John G. Cramer

Alternate View Column AV-10
Keywords: antimatter, positron, quadrupole, Penning trap, CPT
Published in the December-1985 issue of Analog Science Fiction & Fact Magazine;
This column was written and submitted 5/3/85 and is copyrighted ©1985, John G. Cramer. All rights reserved.
No part may be reproduced in any form without the explicit permission of the author.

"What", the Alchemist asked his new apprentice, "is the Universal Solvent?"

"Master", said the lad, "it's one of the fundamental substances of Alchemy.  It will dissolve any solid material.  A drop will dissolve the hardest steel, the finest glass, the most inert wax."

"Very well", said the old man with a frown. "I am about to make some.  Your assignment is to prepare a bottle in which to put it ..."

      This AV Column is about the Universal Solvent of modern physics which we call antimatter, and about a bottle in which it can be and has been kept. However, before getting to the hardware I want to talk about antimatter as it relates to the fundamental symmetries of the universe.

    Physicists have, over the years, been able to get a lot of mileage out of a single nifty idea: Nature is Symmetric. Pioneers like Galileo, Newton, Maxwell, Einstein, Fermi, and many recent Nobel laureates have based their work on the notion that nature at the core is basically symmetrical and even-handed. For example, space has the same properties in all directions. The laws of physics must be the same in all inertial (constant-speed) reference frames. An object with certain symmetries produces effects with the same symmetries. The laws of physics must be the same here and now as they were long ago in a galaxy far away. And so on ...

    And yet as more and more is learned about the inner workings of the universe we have discovered that the breaking of these fundamental symmetries of the universe is also important. The major physics breakthrough of the late 1950's was the revelation that the space symmetry called "parity" (that nature looks the same in mirror-image) is thoroughly broken, spindled, and mutilated by the "weak" force acting in radioactive transformation processes like beta decay. In the mid 1960's it was discovered that the weak decay of the "strange" KoL meson showed a "CP-violation" (the rough equivalent of broken time symmetry). And the recent development of what theoretical physicists modestly call Grand Unified Theories (GUTs) is based on the symmetry breaking of three of the fundamental forces (strong, weak, and electromagnetic). This splitting of one "unified" force into three very different forces happened "spontaneously" as the universe cooled off in expanding after the Big Bang (see "Other Universes I", ANALOG, September, 1984). The symmetries of nature seem made for the breaking.

    Some broken symmetries are important for our well-being. Our everyday life depends on two overwhelmingly important breakings of symmetry at the macroscopic level: (1) our world is clearly different with time running forward than it would be with time running backwards, and (2) there is more matter than antimatter in our local environment. Some SF writers (Brian Aldiss in Cryptozoic!!, for example) have been able to contemplate a somewhat time-symmetric world. But no one, to my knowledge, has written about everyday life in a "C-symmetric" world in which the local environment was an equal mix of matter and antimatter. Such a literary undertaking would surely be a short story because the incipient matter-antimatter annihilation would blow everything to photons and neutrinos in nanoseconds.

    And so we have a paradox. The microscopic world is so symmetric that only with the greatest of difficulty have we been able to find one obscure physical process, the KoL decay, which shows any preference at all for one direction of time over another or for matter over antimatter. And yet in the macroscopic every-day world these time and matter preferences are everywhere, and we depend on them in our everyday lives. The matter/antimatter unbalance is not just a local phenomenon. There is now fairly good observational evidence that there are no large amounts of antimatter even in more remote parts of the universe in the form of anti-stars and anti-galaxies. And so we must ask, "How can the macrocosm be so radically different from the microcosm when it is really only a summation of all of the microscopic fundamental processes, as viewed from a distance in space and time?"

    The preference of the everyday world for the forward time direction, the "Arrow of Time" problem, was discussed in one of my recent AV columns ("Light in Reverse Gear II", Analog, August, 1985) and that discussion will do for now. In this AV column I want to consider the questions: "Where did all of this matter come from, and where did all of the antimatter go?" The GUTs theorists believe that they have the answer to this question. Their scenario is that in the primordial soup of the very early universe there were other heavier particles which, like the KoL meson, had a "CP violation", a slight preference for decaying into matter particles instead of antimatter particles. The net result of this is that the early universe had about 100,000,001 protons for every 100,000,000 antiprotons. In the cooling after the Big Bang the protons and antiprotons found and destroyed each other until the slight excess of protons became all the matter there was (and is). A side-effect of the same CP-violating processes is that there is also an excess of electrons over positrons. The surviving protons and electrons, about 100,000 years after the Big Bang, paired off to form hydrogen atoms which eventually went into business as stars and galaxies. The enormous energies from matter-antimatter annihilations of the early universe cooled with expansion down to 3o K, the present average temperature of the universe. The electrons and protons around us (and in us) are the few ragged survivors of the "antimatter wars" of 16 billion years ago.

    We would like to understand in a more fundamental way why matter was preferred over antimatter in the early universe. The preference shown by the KoL meson (a matter-antimatter pairing of a "strange" quark and a "down" quark) is a tantalizing hint at the matter/antimatter difference, but we would like to know whether there are other ways in which antimatter differs from matter. One way of looking for such differences is to compare all the measurable properties of matter particles (protons and electrons) with the same properties of antimatter particles (antiprotons and positrons). This comes down to the experimental problem of how we can weigh and measure particles of antimatter.

    The first problem that we encounter here is that there aren't any antimatter particles lying around to be used in measurements. They were all destroyed shortly after the Big Bang. But we are not out of business, because we can make antimatter. We can make antiprotons with large particle accelerators. At the LEAR (Low Energy Antiproton Ring) facility at CERN laboratory in Switzerland, physicists have been able to produce huge numbers of antiprotons, store them for hours in as they coast in circular orbits through a ring of magnets, and finally deliver them as a beam of particles for nuclear reaction studies. Positrons are even easier. Nuclear reactors make certain isotopes which emit positrons during radioactive decay, and positrons can also be produced by beams of electrons and preserved by orbiting in a ring of magnets.

    In storage rings measurement of the properties of antimatter particles is usually not very precise because the very factors which keep the particles stable in orbit also interfere with measurement precision. Therefore, one would like to be able to measure the particles "at rest" in the laboratory. This is related to the alchemist's problem of storing the Universal Solvent. Since antimatter will annihilate on contact with any matter, what kind of bottle can hold it?

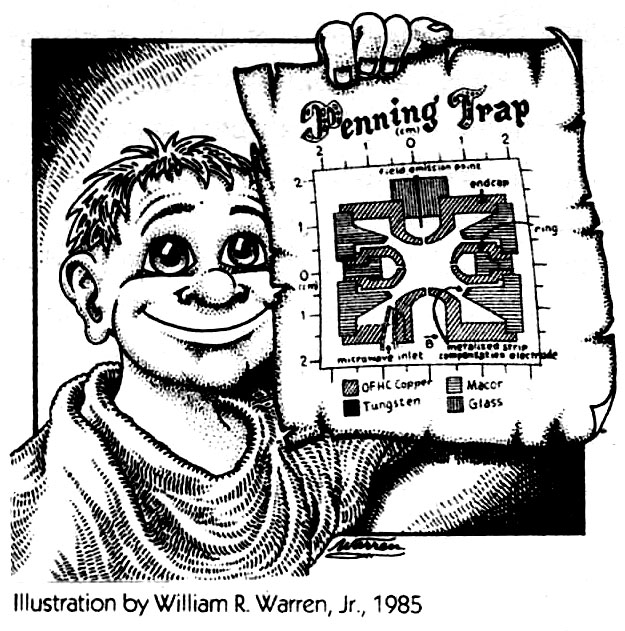

    Fortunately this problem has an experimental solution. A group of physicists at the University of Washington has developed a bottle for antimatter called a Penning Trap. It looks rather like a metal hour-glass with a knob poking into each end. The knobs and hour-glass are given opposite electrical charges, and the whole thing is placed in a magnetic field pointing along the axis of the hour glass. Into this apparatus one can place a single proton or electron, and the particle will stay there, held in place by the electric and magnetic forces of the trap. One can then "play games" with the trapped particle, putting it through a routine of shaking and bouncing and oscillation that determines its mass, charge, spin, and internal magnetic field to almost unimaginable precision.

    A few years ago a single particle of antimatter, a positron, was successfully captured in such a trap. Positrons from a radioactive source were slowed and carefully manipulated until one popped into the Penning Trap. There it was weighed and measured it to see whether it showed any differences (other than charge) from its equivalent matter particle, the electron. The same positron stayed in the trap for a number of days. It represents the first instance of artificially produced antimatter at rest on Earth lasting for more than a fraction of a second. The measurements made on the single trapped positron are capable of detecting differences of one part in a trillion (10-12 ), but even with this remarkable accuracy no difference between electrons and positrons was detected.

    A similar experiment is now being prepared for trapping an antiproton. The trap apparatus will be taken to the LEAR facility at CERN. There an antiproton will be carefully slowed and captured in the trap. The experimenters expect that a proton-antiproton mass difference smaller than one part in a billion (10-9 ) could be detected. If such a difference existed, it would be a very significant clue toward solving the mystery of the matter/antimatter imbalance of the universe.

    But beyond the weights-and-measures of antimatter, the experiment will represent a demonstration that antimatter can be produced, captured, and stored at rest for indefinite periods in the laboratory. As Robert W. Forward has pointed out in the pages of Analog, antimatter is the most compact way yet devised for storing energy, and it may have enormous potential as a fuel for starship engines. We have the Universal Solvent, and we have the bottle in which to keep it. The rest is a problem for engineers ... and alchemists.

John G. Cramer's 2016 nonfiction book (Amazon gives it 5 stars) describing his transactional interpretation of quantum mechanics, The Quantum Handshake - Entanglement, Nonlocality, and Transactions, (Springer, January-2016) is available online as a hardcover or eBook at: or

SF Novels by John Cramer: Printed editions of John's hard SF novels Twistor and Einstein's Bridge are available from Amazon at and His new novel, Fermi's Question may be coming soon.

Alternate View Columns Online: Electronic reprints of 212 or more "The Alternate View" columns by John G. Cramer published in Analog between 1984 and the present are currently available online at: .


Penning Traps:
P. Ekstrom and D. Wineland, Scientific American 243 #2, 105 (August, 1980).

Trapped Positron:
P. B. Schwinberg, R. S. Van Dyck, Jr., and H. G. Dehmelt, Physical Review Letters 47, 1679 (1981).
